五级流水 CPU 设计与实现
# 流水线 CPU
# 流水线 CPU 概述
在单周期 CPU 里,一个 clk 上升沿将完成以下内容:取值 - 译码 - 执行 - 回写
在流水 CPU 中,首先过程增加一级,为:取值 - 译码 - 执行 - 访存 - 回写;第二,它把每个过程通过时钟周期分隔开,如
| 时钟周期 | 取值 | 译码 | 执行 | 访存 | 回写 |
|---|---|---|---|---|---|
| 1 | 取值1 | ||||
| 2 | 取值2 | 译码1 | |||
| 3 | 取值3 | 译码2 | 执行1 | ||
| 4 | 取值4 | 译码3 | 执行2 | 访存1 | |
| 5 | 取值5 | 译码4 | 执行3 | 访存2 | 回写1 |
| 6 | 取值6 | 译码5 | 执行4 | 访存3 | 回写2 |
| ... |
以这样的形式对每条指令进行执行,在一定数量后,每个时钟周期均有指令完成,效率更高,当减少 clk 的时间长度(相较于单周期,流水线 CPU 在一个时钟周期内要做的事更少),指令的执行频率将越高,此之谓提高主频
要实现这样的过程,需要在每个步骤之间加一层流水线传输级,用 clk 的上升沿控制数据的传输,以实现步骤的分割

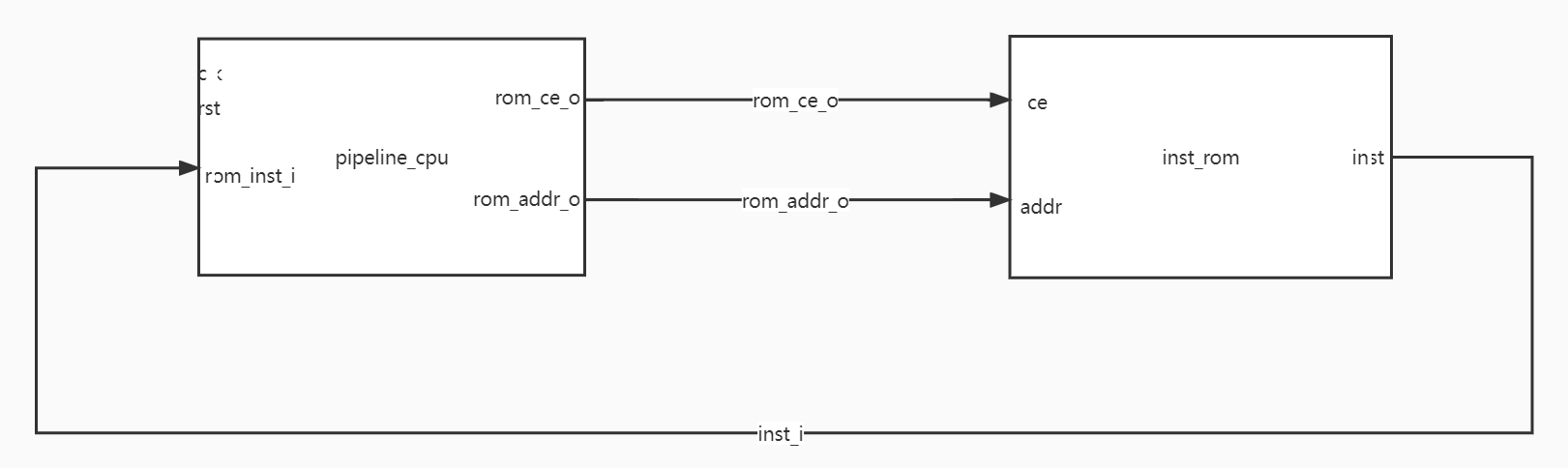

将存储器和 CPU 解耦,和单周期类似,以 SOPC 的形式将五级流水 CPU 和存储器 inst_rom 连接,如下所示
为了防止流水线停滞以及读后写的情况发生,需要做流水线延迟槽和数据前推
流水线延迟槽:当 id 模块,及译码器分析出跳转指令时,由于译码器处于第二模块,此时第一模块取值 pc 已经调入了下一条指令,显然是顺序调入的,此时我们选择保留这条指令继续执行,而在下一个时钟周期再调入要跳转的指令,从识别出跳转指令到调入跳转指令之间,相隔了一条指令,这就叫延迟槽
读后写:由于指令流水线执行,有这样一种可能,前一条指令向 a 地址写入数据,后一条指令要从 a 地址读取数据,但数据的回写在第五模块才会执行,也就是说,执行第二条指令时,一定会读到以往的数据(并非是前一条指令更新的数据),造成脏读
数据前推:为了解决“读后写”,在 ex 模块(alu)和 mem 访存模块做了一个数据前推,即提前将执行结果回送到寄存器 regfile,注意是回送,并不是回写,当下一条指令读数据时,提前进行判断,若读地址和上一条指令的写地址相同,不从实际的 a 地址取数据,而是直接把后续模块回送的数据赋值给要读的数据 reg_data,实现实时更新
# SOPC
System on programmable chip
mips_sopc.v
`timescale 1ns / 1ps
`include"defines.v"
module mips_sopc(
input wire clk,
input wire rst//高电平复位
);
wire rom_ce = 1;//使能,高电平允许使用
wire[`instaddrbus]inst_addr;//指令地址为32位
wire[`instbus]inst;//返回指令
cpu cpu0(rst,clk,inst,rom_ce,inst_addr);
inst_rom inst_rom0(rom_ce,inst_addr,inst);
endmodule
2
3
4
5
6
7
8
9
10
11
12

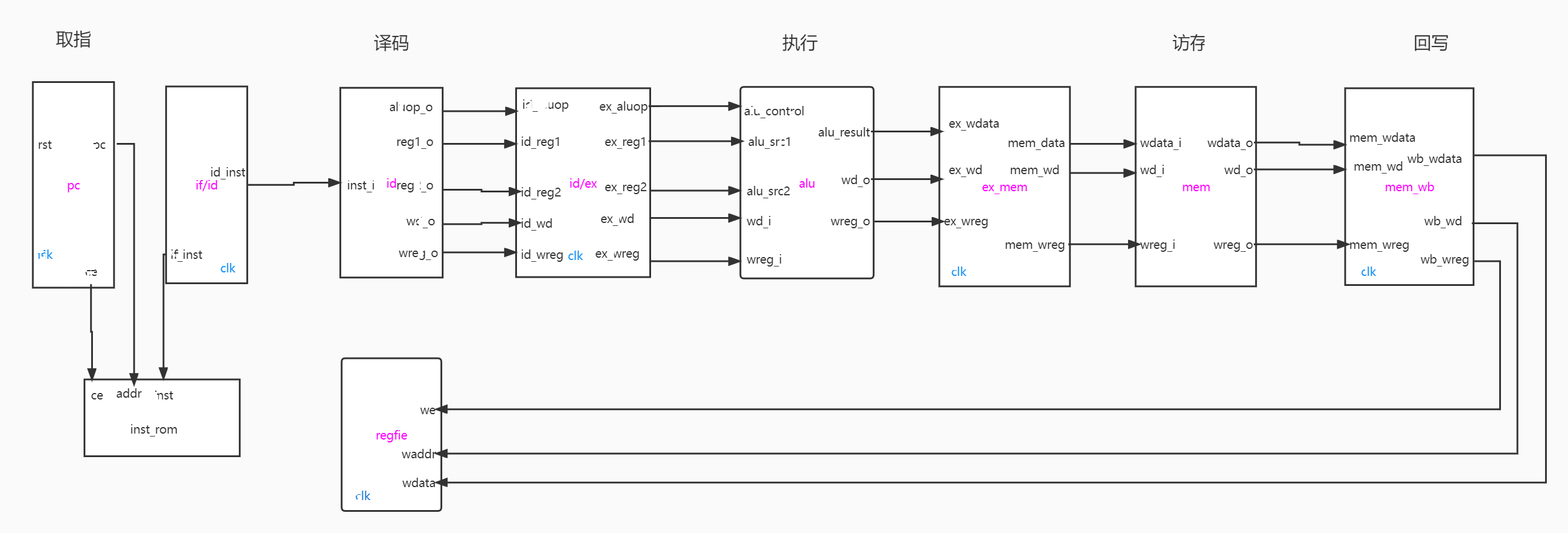

# 五级流水 CPU
cpu.v
`include "defines.v"
`timescale 1ns/1ps
module cpu(
//pc有两个id来的输入
//id5个输入一个输出
input wire rst,
input wire clk,
input wire[`instbus] rom_data_i,//rom返回的指令
output wire rom_ce_o,//给rom的使能0代表ron返回全零指令
output wire [`instaddrbus] rom_addr_o//给rom的指令地址
);
//////////////////////////////////////////////二次增加连线的集合
//pc
//output reg [`instaddrbus] pc_o,//给ifid地址
wire [`instaddrbus]pcifidpc;//
// input wire branch_flag_i,
wire idpcbranch;//
// input wire[`regbus] branch_target_address_i
wire [`regbus]idpcbranchaddr;//
//ifid
//input wire [`instaddrbus] pc_i,//给ifid地址
// output reg [`instaddrbus] pc_o//给ifid地址
wire [`instaddrbus] ifididpc;//
//id
//input wire is_in_delayslot_i,//当前处于译码阶段的指令是否位于延迟操
wire idexiddelayslot;//
// output wire next_inst_in_delayslot_o,//下一条进入译码阶段的的指令是否位于延迟槽
wire ididexnextdelayslot;//
// output wire branch_flag_o, //告诉pc是否有转移
// output wire [`regbus]branch_target_address_o,//告诉pc转移的指令在指令存贮器的地址
// output wire [`regbus]link_addr_o,//转移指令要保存的返回地址
wire [`regbus]ididexlinkaddr;//
// output wire is_in_delayslot_o,//告诉alu当前译码阶段的指令是否位于延迟槽
wire ididexisindelayslot; //
// input wire [`instaddrbus]pc_i,//pc来的指令地址
// output wire [`regbus] inst_o //将指令输出
wire [`regbus] ididexinst;//
//idex
//input wire[`regbus]id_link_address,
// input wire id_is_in_delayslot,
// input wire next_inst_in_delayslot_i,
// output reg[`regbus] ex_link_address,
wire [`regbus] idexexlinkaddress;//
// output reg ex_is_in_delayslot,
wire idexexdelayslot;//
// output reg is_in_delayslot_o,
// ////////////////////////////////////////////
// input wire [`regbus] id_inst,//id 给的指令
// output reg [`regbus] ex_inst
wire [`regbus]idexexinst;//
//alu
// input wire [`regbus] link_address_i,
// input wire is_in_delayslot_i,
// //存储指令
// input wire [`regbus] inst_i,//当前处于执行阶段的指令
// output wire [`aluop_onehotbus] aluop_o,//指令运算子类型
wire [`aluop_onehotbus] exexmemaluop;//
// output wire [`regbus] mem_addr_o,//加载存储指令对应的存储器地址
wire [`regbus] exexmemaddr;//
// output wire [`regbus] reg2_o ,//存储指令要存储的数据
wire [`regbus] exexmemreg2;//
// ///////////////////////////数据前推
// output wire[`regdatabus] wb_wdata,
wire[`regdatabus] exregdata;//
// output wire[`regaddrbus] wb_wd,
wire[`regaddrbus] exregwaddr;//
// output wire wb_wreg
wire exregwe;//
//exmem
///////////存储指令
// input wire [`aluop_onehotbus] ex_aluop,
// input wire [`regbus] ex_mem_addr,
// input wire [`regbus] ex_reg2,
// output reg [`aluop_onehotbus] mem_aluop,
wire [`aluop_onehotbus] exmemmemaluop;//
// output reg [`regbus] mem_mem_addr,
wire [`regbus] exmemmemaddr;//
// output reg [`regbus] mem_reg2
wire [`regbus] exmemmemreg2;//
//mem
/////////////////////////////////
// input wire [`aluop_onehotbus] aluop_i,//指令独热码
// input wire [`regbus] mem_addr_i,//地址,lw从中间取并保存到wd_o,sw将reg2_i存入mem_addr_i.
// input wire [`regbus] reg2_i,//访存阶段存储指令要存储的地址//sw将rt的值取出。
// input wire [`regbus] mem_data_i,//从instrom读取的的数据
wire [`regbus] regmemdata;
// output reg [`regbus] mem_addr_o,//要访问的数据存储器的地址
wire [`regbus] memregaddrs;
// output reg mem_we_o,//是否是写操作,1表示写操作
wire memregwes;
// output reg [`regbus] mem_data_o,//要写入数据存储器的数据
wire [`regdatabus] memregdatas;
// ////////////数据前推
// output wire[`regdatabus] wb_wdata,
wire[`regdatabus] memregdata;//
// output wire[`regaddrbus] wb_wd,
wire[`regaddrbus] memregwaddr;//
// output wire wb_wreg
wire memregwe;//
//memwb
//regfile
//////////////////////////////////////////////////////////
pc pc0(rst,clk,rom_addr_o,ce,pcifidpc,idpcbranch,idpcbranchaddr);
wire [`instbus] id_inst_i;
if_id if_id0(clk,rst,rom_data_i,id_inst_i,pcifidpc,ifididpc);
wire [`aluop_onehotbus] id_aluop_o;
wire [`regdatabus] id_reg1_o;
wire [`regdatabus] id_reg2_o;
wire [`regaddrbus] id_wd_o;
wire id_wreg_o;
wire [`regdatabus] reg1_data;
wire [`regdatabus] reg2_data;
wire reg1_read;
wire reg2_read;
wire [`regaddrbus]reg1_addr;
wire [`regaddrbus]reg2_addr;
id id0(rst,id_inst_i,reg1_data,reg2_data,
id_aluop_o,id_reg1_o,id_reg2_o,id_wd_o,id_wreg_o,reg1_addr,reg2_addr,
reg1_read,reg2_read
,idexiddelayslot ,ididexnextdelayslot ,idpcbranch ,idpcbranchaddr ,ididexlinkaddr ,ididexisindelayslot ,ifididpc , ididexinst );
wire [`aluop_onehotbus] ex_aluop_i;
wire [`regdatabus] ex_reg1_i;
wire [`regdatabus] ex_reg2_i;
wire [`regaddrbus] ex_wd_i;
wire ex_wreg_i;
id_ex id_ex0(rst,clk,id_aluop_o,id_reg1_o,id_reg2_o,id_wd_o,id_wreg_o,
ex_aluop_i,ex_reg1_i,ex_reg2_i,ex_wd_i,ex_wreg_i,
ididexlinkaddr , ididexisindelayslot,ididexnextdelayslot ,idexexlinkaddress ,idexexdelayslot , idexiddelayslot,ididexinst , idexexinst);
wire [`regdatabus] ex_wdata_o;
wire [`regaddrbus] ex_wd_o;
wire ex_wreg_o;
alu alu0(ex_reg1_i,ex_reg2_i,ex_aluop_i,ex_wd_i,ex_wreg_i,
ex_wdata_o,ex_wd_o,ex_wreg_o,
idexexlinkaddress,idexexdelayslot ,idexexinst ,exexmemaluop ,exexmemaddr , exexmemreg2,exregdata ,exregwaddr , exregwe);
wire [`regdatabus] mem_wdata_i;
wire [`regaddrbus] mem_wd_i;
wire mem_wreg_i;
ex_mem ex_mem0(clk,rst,ex_wdata_o,ex_wd_o,ex_wreg_o,
mem_wdata_i,mem_wd_i,mem_wreg_i
,exexmemaluop,exexmemaddr,exexmemreg2,exmemmemaluop , exmemmemaddr,exmemmemreg2 );
wire [`regdatabus] mem_wdata_o;
wire [`regaddrbus] mem_wd_o;
wire mem_wreg_o;
mem mem0(rst,mem_wdata_i,mem_wd_i,mem_wreg_i,
mem_wdata_o,mem_wd_o,mem_wreg_o
,exmemmemaluop,exmemmemaddr , exmemmemreg2,regmemdata, memregaddrs ,memregwes ,memregdatas ,memregdata ,memregwaddr , memregwe);
wire [`regdatabus] wb_wdata_i;
wire [`regaddrbus] wb_wd_i;
wire wb_wreg_i;
mem_wb mem_wb0(clk,rst,mem_wdata_o,mem_wd_o,mem_wreg_o,
wb_wdata_i,wb_wd_i,wb_wreg_i);
regfile regfile0(rst,clk,wb_wd_i,wb_wdata_i,wb_wreg_i,
reg1_addr,reg1_read,reg1_data,reg2_addr,reg2_read,reg2_data
, memregaddrs,memregwes ,memregdatas ,regmemdata ,exregdata ,exregwaddr , exregwe,memregdata ,memregwaddr ,memregwe );
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
# 存储器和计数器
# 存储器 ROM
inst_rom.v
`timescale 1ns / 1ps
`include "defines.v"
module inst_rom(
input wire ce,
input wire [`instaddrbus] addr,//指令地址
output reg [`instbus] inst
);
reg [`instbus] inst_mem[0:127];
// 将指令读入 inst_mem
initial begin
$readmemh("c:/file/vivado/inst_rom.data",inst_mem);
end
always @(*)begin
if(ce==0)begin
inst<=`zeroword;//返回的指令为全0
end else begin
inst<=inst_mem[addr[31:2]];//老师写的麻烦,就改了
//inst<=inst_mem[addr[6:0]];
//instmem大小为128*4B只需要7位地址线,所以用addr的6到0位作为地址就可以了,addr的数每次+1`b1.
//instmem的单位地址大小位4B,所以存取的内容为32位
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# 程序计数器 PC
pc.v
`timescale 1ns / 1ps
`include "defines.v"
module pc(
input rst,
input clk,
output reg [`instaddrbus] pc,// 当前指令地址,传给存储器进行取值
output reg ce,
output wire [`instaddrbus] pc_o,// 给if_id地址
input wire branch_flag_i, // 当为1,说明为跳转指令
input wire[`regbus] branch_target_address_i // 跳转指令地址
);
assign pc_o=(rst)? 32'h00000000:pc;
always @(posedge clk)begin
if(rst==`rstenable)begin
ce<=`chipdisable;
//rst为高,表休息。
//ce为低,pc置0,表取出的指令为全零
end else begin
ce<=`chipenable;
end
end
always @(posedge clk)begin
if(ce==`chipdisable)begin
pc<=32'h00000000;
end else if (branch_flag_i==`branch)begin
pc<=branch_target_address_i; // 如果是跳转指令,跳转到跳转指令要到达的地址
end else begin
pc<=pc+4'h4; // 否则 pc 指针顺序增加,顺序执行
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
# 译码器和运算器
# 译码器 ID
id.v
`timescale 1ns / 1ps
`include"defines.v"
module id(
input wire rst,
input wire[`instbus] inst_i,//进指令
input wire[`regdatabus]reg1_data_i,//进regfile来的数据
input wire[`regdatabus]reg2_data_i,
output wire[`aluop_onehotbus]aluop_o,//21位独热码,表明是哪个指令
output wire[`regdatabus]reg1_o,//操作数1.2
output wire[`regdatabus]reg2_o,
output wire[`regaddrbus]wd_o,//要吧结果写入的地址
output wire wreg_o,//要不要写入regfile
output wire[`regaddrbus]reg1_addr_o,//要调用的regfile的地址
output wire[`regaddrbus]reg2_addr_o,
output wire reg1_read_o,//允许写
output wire reg2_read_o,
// 跳转指令接口
input wire is_in_delayslot_i,//当前处于译码阶段的指令是否位于延迟操
output wire next_inst_in_delayslot_o,//下一条进入译码阶段的的指令是否位于延迟槽
output wire branch_flag_o, //告诉pc是否有转移
output wire [`regbus]branch_target_address_o,//告诉pc转移的指令在指令存贮器的地址
output wire [`regbus]link_addr_o,//转移指令要保存的返回地址
output wire is_in_delayslot_o,//告诉alu当前译码阶段的指令是否位于延迟槽
// 存储指令接口
input wire [`instaddrbus]pc_i,//pc来的指令地址
output wire [`regbus] inst_o //将指令输出
);
assign inst_o=inst_i;
//有3种格式的指令
//共需要4个段的指令段的判定来确定代码是那个指令
//进译码器
wire[5:0] op;//头6为
wire[4:0] op1;//之后的5位
wire[4:0] sa;//中5位
wire[5:0] func;//最后6位
//出译码器
wire[63:0] op_d;
wire[31:0] op1_d;
wire[31:0] sa_d;
wire[63:0] func_d;
assign op = inst_i[31:26]; // 6位
assign op1 = inst_i[25:21]; // 5位
assign sa = inst_i[10:6]; // 5
assign func = inst_i[5:0]; // 6
decoder_6_64 dec0(.in(op) , .out(op_d));
decoder_5_32 dec1(.in(op1) , .out(op1_d));
decoder_5_32 dec2(.in(sa) , .out(sa_d));
decoder_6_64 dec3(.in(func) , .out(func_d));
//定义14个线来组成14位独热码来为之后的部件表示这是什么指令
wire inst_add;
wire inst_addu;
wire inst_sub;
wire inst_subu;
wire inst_slt;
wire inst_sltu;
wire inst_and;
wire inst_or;
wire inst_xor;
wire inst_nor;
wire inst_sll;
wire inst_srl;
wire inst_sra;
wire inst_lui;
wire inst_addiu;
wire inst_lw;
wire inst_sw;
wire inst_beq;
wire inst_bne;
wire inst_jr;
wire inst_jal;
//当译码器的输出op_d的第opzero位输出为1
// 而且sa_d[`sazero]和func_d[`funcadd]的输出为1
//则inst_add为1,其他的inst_x则为0,
//要实现的指令少时可以不用编码器,直接对对inst_i的各位进行判断
assign inst_add = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcadd];
assign inst_addu = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcaddu];
assign inst_sub = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcsub];
assign inst_subu = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcsubu];
assign inst_slt = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcslt];
assign inst_sltu = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcsltu];
assign inst_and = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcand];
assign inst_or = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcor];
assign inst_xor = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcxor];
assign inst_nor = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcnor];
assign inst_sll = op_d[`opzero]&&op1_d[`oplzero]&&func_d[`funcsll];
assign inst_srl = op_d[`opzero]&&op1_d[`oplzero]&&func_d[`funcsrl];
assign inst_sra = op_d[`opzero]&&op1_d[`oplzero]&&func_d[`funcsra];
assign inst_lui = op_d[`oplui]&&op1_d[`oplzero];
assign inst_addiu = op_d[`opaddiu];
assign inst_lw = op_d[`oplw];
assign inst_sw = op_d[`opsw];
assign inst_beq = op_d[`opbeq];
assign inst_bne = op_d[`opbne];
assign inst_jr = op_d[`opzero]&&sa_d[`sazero]&&func_d[`funcjr];
assign inst_jal = op_d[`opjal];
//wire [13:0] aluop_o;
//14位中只有一位为1,表示是那个指令这就是独热码
assign aluop_o = (rst == `rstenable) ? 21'b0 :
{
inst_add,
inst_addu,
inst_sub,
inst_subu,
inst_slt,
inst_sltu,
inst_and,
inst_or,
inst_xor,
inst_nor,
inst_sll,
inst_srl,
inst_sra,
inst_lui,
inst_addiu,
inst_lw,
inst_sw,
inst_beq,
inst_bne,
inst_jr,
inst_jal
};
// 从指令中读出读地址
assign reg1_addr_o = (rst == `rstenable) ? `zeroregaddr : inst_i[25:21];
assign reg2_addr_o = (rst == `rstenable) ? `zeroregaddr : inst_i[20:16];
// 除 lui sll srl sra jal 外,均需要取第一个数,读使能赋值为 1
assign reg1_read_o = (rst == `rstenable) ? `readdisable : !(inst_lui||inst_sll || inst_srl || inst_sra||inst_jal);
// 除 lui addiu jr jal lw 指令外,均需要读第二个操作数,读使能赋为 1
assign reg2_read_o = (rst == `rstenable) ? `readdisable : !(inst_lui||inst_addiu||inst_jr||inst_jal||inst_lw);
// 立即数
reg [`regdatabus]imm;
// 根据指令类型从指令中取立即数
always @(*)begin
if(inst_lui==1'b1)begin
imm <= {inst_i[15:0],16'b0};
end else if(inst_addiu==1'b1)begin
imm <= {{16{inst_i[15]}},inst_i[15:0]};
end else begin//偏移指令要用的偏移位数
imm<= {27'b0,inst_i[10:6]};
end
end
wire[`regbus]pcplus8;
wire[`regbus]pcplus4;
wire[`regbus]imm_s112_signedext;
assign pcplus8=pc_i+5'h8;
assign pcplus4=pc_i+5'h4;
assign imm_s112_signedext={{14{inst_i[15]}},inst_i[15:0],2'b00};//跳转指令用的
//输向ex单元的操作数是刚从regfile读到的data还是立即数?根据使能信号reg1_read_o reg2_read_o判断
//是lui指令时两个都不赋能,两个操作数都是立即数,
//当是sll,srl,sra,的指令时操作数2赋能,是reg数据,操作数1是立即数
assign reg1_o = rst ? `zeroword :
(reg1_read_o ? reg1_data_i : imm);
assign reg2_o = rst ? `zeroword :
(reg2_read_o ? reg2_data_i : imm);
// 判断写使能,是否需要回写
assign wd_o = rst ? `zeroregaddr :
((inst_lui||inst_addiu||inst_lw) ? inst_i[20:16] :
(inst_jal) ?5'b11111:
inst_i[15:11]);
// 是否需要ex单元将结果写入regfile,14条指令都需要将结果写入regfile
assign wreg_o = rst ? `writedisable :
((inst_jr||inst_beq||inst_bne||inst_sw)?`writedisable:`writeenable);//sw通过mem直接写入rom,不通过mem_wb写入rom,所以writedisable
// 只有 jal 指令需要用到 link_addr_o 接口
assign link_addr_o = rst ? `zeroword :
((inst_jal)?pcplus8:`zeroword);
// 跳转地址,只有当 jr jal,或 beq 指令且两个操作数相等。或 bne 指令且两个操作数不等
// 需要回写跳转地址
assign branch_target_address_o = rst ? `zeroword :
(inst_jr)?reg1_o:
(inst_jal)?{pcplus4[31:28],inst_i[25:0],2'b00}:
(inst_beq&&(reg1_o==reg2_o))?{pcplus4+imm_s112_signedext}:
(inst_bne&&(reg1_o!=reg2_o))?{pcplus4+imm_s112_signedext}:
`zeroword;
// 跳转信号,是否需要跳转
assign branch_flag_o = rst ? `notbranch :
((inst_jr||inst_jal||(inst_beq&&(reg1_o==reg2_o))||(inst_bne&&(reg1_o!=reg2_o)))
?`branch:`notbranch);
assign next_inst_in_delayslot_o = rst ? `notindelayslot :
((inst_jr||inst_jal||(inst_beq&&(reg1_o==reg2_o))||(inst_bne&&(reg1_o!=reg2_o)))
?`indelayslot:`notindelayslot);
assign is_in_delayslot_o = rst ? 1'b0 :is_in_delayslot_i;
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
# 运算器 ALU
alu.v
`timescale 1ns / 1ps
`include "defines.v"
module alu(
input wire[31:0]alu_src1,
input wire[31:0]alu_src2,
input wire[`aluop_onehotbus]alu_control,
input wire[4:0]wd_i,
input wire wreg_i,
output reg[31:0]alu_result,
output wire[4:0]wd_o,
output wire wreg_o,
//转移指令
input wire [`regbus] link_address_i,
input wire is_in_delayslot_i,
//存储指令
input wire [`regbus] inst_i,//当前处于执行阶段的指令
output wire [`aluop_onehotbus] aluop_o,//指令运算子类型
output wire [`regbus] mem_addr_o,//加载存储指令对应的存储器地址
output wire [`regbus] reg2_o ,//存储指令要存储的数据
///////////////////////////数据前推
output wire[`regdatabus] wb_wdata,
output wire[`regaddrbus] wb_wd,
output wire wb_wreg
);
assign wd_o = wd_i;
assign wreg_o = wreg_i;
//访存要用
assign aluop_o=alu_control;
assign mem_addr_o=alu_src1+{{16{inst_i[15]}},inst_i[15:0]};//lw指令的存储地址=base内容加扩展的32位
//读取一个字保存到rt //sw指令的访问地址=base内容加扩展的32位
assign reg2_o=alu_src2;//sw指令这读的是rt的值,要存入 mem_addr_o中。
////////////////// lw中 reg2_o无意义
wire[`regdatabus]alu_src2_mux;
wire[`regdatabus]result_sum;
wire[`regdatabus]result_slt;
//需要进行取反+1吗?sub subu slt需要将 操作数2 取反加一
assign alu_src2_mux = ((alu_control == `aluopsub) || (alu_control == `aluopsubu) || (alu_control == `aluopslt))?
(~alu_src2 + 1) : alu_src2;
//为了之后代码简洁,可以提前算出来(尽管可能用不到)
assign result_sum = alu_src1 + alu_src2_mux;
//比较运算
assign result_slt = (alu_src1[31] && !alu_src2[31]) ||
(!alu_src1[31] && !alu_src2[31] && result_sum[31]) ||
(alu_src1[31] && alu_src2[31] && result_sum[31]);
// 根据指令进行运算操作
always @(*)begin
case(alu_control)
`aluopadd,`aluopaddu,`aluopsub,`aluopsubu,`aluopaddiu:begin
alu_result = result_sum;
end
`aluopslt:begin
alu_result = result_slt;
end
`aluopsltu:begin
alu_result = (alu_src1 < alu_src2);
end
`aluopand:begin
alu_result = alu_src1 & alu_src2;
end
`aluopor:
alu_result = alu_src1 | alu_src2;
`aluopxor:
alu_result = alu_src1^alu_src2;
`aluopnor:
alu_result = ~(alu_src1^alu_src2);
`aluopsll:
alu_result = alu_src2 << alu_src1[4:0];
`aluopsrl:
alu_result = alu_src2 >> alu_src1[4:0];
`aluopsra:
alu_result = ({32{alu_src2[31]}} << (6'd32 - {1'b0,alu_src1[4:0]})) |
(alu_src2 >> alu_src1[4:0]);
`aluoplui:
alu_result = alu_src2;
`aluopjal:
alu_result<=link_address_i;
default:
alu_result = `zeroword;
endcase
end
/////////数据前推用
assign wb_wdata=alu_result;
assign wb_wd=wd_o;
assign wb_wreg=wreg_o;
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
# 访存模块与流水线分级
# 访存模块 MEM
mem.v
`timescale 1ns / 1ps
`include "defines.v"
module mem(
input wire rst,
input wire [`regdatabus] wdata_i,
input wire [`regaddrbus] wd_i,
input wire wreg_i,
output reg[`regdatabus] wdata_o,
output reg[`regaddrbus] wd_o,
output reg wreg_o,
///////////////////////////////
input wire [`aluop_onehotbus] aluop_i,//指令独热码
input wire [`regbus] mem_addr_i,//地址,lw从中间取并保存到wd_o,sw将reg2_i存入mem_addr_i.
input wire [`regbus] reg2_i,//访存阶段存储指令要存储的地址//sw将rt的值取出。
input wire [`regbus] mem_data_i,//从instrom读取的的数据
output reg [`regbus] mem_addr_o,//要访问的数据存储器的地址
output reg mem_we_o,//是否是写操作,1表示写操作
//output reg [3:0] mem_sel_o,//字节选择信号、、是干啥的不知道
output reg [`regbus] mem_data_o,//要写入数据存储器的数据
//output reg mem_ce_o //instrom使能信号
////////////数据前推
output wire[`regdatabus] wb_wdata,
output wire[`regaddrbus] wb_wd,
output wire wb_wreg
);
////数据前推用
assign wb_wdata=wdata_o;
assign wb_wd=wd_o;
assign wb_wreg=wreg_o;
always@(*)begin
if (rst)begin
wd_o=`zeroregaddr;
wdata_o=`zeroword;
wreg_o=`writedisable;
mem_addr_o=`zeroword;//要访问的数据存储器的地址
mem_we_o=`writedisable;//是否是写操作,1表示写操作
//mem_sel_o=4'b0000;//字节选择信号
mem_data_o=`zeroword;//要写入数据存储器的数据
// mem_ce_o=`chipdisable; //数据存储器使能信号
end else begin
wd_o=wd_i;
wdata_o=wdata_i;
wreg_o=wreg_i;
mem_addr_o=`zeroword;//要访问的数据存储器的地址
mem_we_o=`writedisable;//是否是写操作,1表示写操作
//mem_sel_o=4'b1111;//字节选择信号
mem_data_o=`zeroword;//要写入数据存储器的数据
// mem_ce_o=`chipdisable; //数据存储器使能信号
case(aluop_i)
`aluoplw: begin
mem_addr_o=mem_addr_i;//向rom要地址的内容以,作为wdata_o,存入 wd_o
mem_we_o=`writedisable; //之后存数据走mem_wb的流程就好了。不用直接存到
wdata_o=mem_data_i;//数据从rom回来了
//mem_sel_o=4'b1111;
//mem_ce_o=`chipenable;
end
`aluopsw: begin
mem_addr_o=mem_addr_i;//要将mem_data_o写入mem_addr_i
mem_we_o=`writeenable;
mem_data_o=reg2_i;//这个是来自rt的值要存入rom
// mem_sel_o=4'b1111;
// mem_ce_o=`chipenable;
end
default:begin
end
endcase
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
# 流水线分级
if_id:连接程序计数器 pc 和译码器 id
if_id.v
`timescale 1ns / 1ps
`include "defines.v"
// 相当于电线,直接把 pc 的输出输入到 id 中,中间由 if_id 连接
module if_id(
input wire clk,
input wire rst,
input wire [`instbus] if_inst,
output reg[`instbus] id_inst,
input wire [`instaddrbus] pc_i,// 给ifid地址
output reg [`instaddrbus] pc_o// 给ifid地址
);
always@(posedge clk)begin
if(rst)begin
id_inst=`zeroword;
pc_o=32'h00000000;
end else begin
id_inst=if_inst;//只传递指令
pc_o=pc_i;
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
id_ex:连接译码器 id 和运算器 alu
id_ex.v
`timescale 1ns / 1ps
`include "defines.v"
module id_ex(
input wire rst,
input wire clk,
input wire [`aluop_onehotbus] id_aluop,
input wire [`regdatabus] id_reg1,
input wire [`regdatabus] id_reg2,
input wire [`regaddrbus] id_wd,
input wire id_wreg,
output reg [`aluop_onehotbus] ex_aluop,
output reg [`regdatabus] ex_reg1,
output reg [`regdatabus] ex_reg2,
output reg [`regaddrbus] ex_wd,
output reg ex_wreg,
//////////////////////////////////////////////
input wire[`regbus]id_link_address,
input wire id_is_in_delayslot,
input wire next_inst_in_delayslot_i,
output reg[`regbus] ex_link_address,
output reg ex_is_in_delayslot,
output reg is_in_delayslot_o,
////////////////////////////////////////////
input wire [`regbus] id_inst,//id 给的指令
output reg [`regbus] ex_inst
);
always@(posedge clk)begin
if(rst)begin
ex_aluop=`aluopzero;
ex_reg1=`zeroword;
ex_reg2=`zeroword;
ex_wd=`zeroregaddr;
ex_wreg=`writedisable;
ex_link_address=`zeroword;
ex_is_in_delayslot=`notindelayslot;
is_in_delayslot_o=`notindelayslot;
ex_inst=`zeroword;
end else begin
ex_aluop=id_aluop;
ex_reg1=id_reg1;
ex_reg2=id_reg2;
ex_wd=id_wd;
ex_wreg=id_wreg;
ex_link_address=id_link_address;
ex_is_in_delayslot=id_is_in_delayslot;
is_in_delayslot_o=next_inst_in_delayslot_i;
ex_inst=id_inst;
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
ex_mem:连接运算器 alu 和访存模块 mem
ex_mem.v
`timescale 1ns / 1ps
`include "defines.v"
module ex_mem(
input wire clk,
input wire rst,
input wire [`regdatabus] ex_wdata,
input wire [`regaddrbus] ex_wd,
input wire ex_wreg,
output reg[`regdatabus]mem_wdata,
output reg[`regaddrbus]mem_wd,
output reg mem_wreg,
/////////存储指令
input wire [`aluop_onehotbus] ex_aluop,
input wire [`regbus] ex_mem_addr,
input wire [`regbus] ex_reg2,
output reg [`aluop_onehotbus] mem_aluop,
output reg [`regbus] mem_mem_addr,
output reg [`regbus] mem_reg2
);
always @(posedge clk)begin
if(rst)begin
mem_wd=`zeroregaddr;
mem_wdata=`zeroword;
mem_wreg=`writedisable;
mem_aluop=`aluopzero;
mem_mem_addr=`zeroword;
mem_reg2=`zeroword;
end else begin
mem_wd=ex_wd;
mem_wdata=ex_wdata;
mem_wreg=ex_wreg;
mem_aluop=ex_aluop;
mem_mem_addr=ex_mem_addr;
mem_reg2= ex_reg2;
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
mem_wd:把结果回写到 regfile
mem_wd.v
`timescale 1ns / 1ps
`include "defines.v"
module mem_wb(
input wire clk,
input wire rst,
input wire [`regdatabus] mem_wdata,
input wire [`regaddrbus] mem_wd,
input wire mem_wreg,
output reg[`regdatabus] wb_wdata,
output reg[`regaddrbus] wb_wd,
output reg wb_wreg
);
always @ (posedge clk)begin
if (rst)begin
wb_wd=`zeroregaddr;
wb_wdata=`zeroword;
wb_wreg=`writedisable;
end else begin
wb_wd=mem_wd;
wb_wdata=mem_wdata;
wb_wreg=mem_wreg;
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# 寄存器和编码器
# 寄存器 Regfile
regfile.v
`timescale 1ns / 1ps
`include "defines.v"
module regfile(
input rst,
input clk,
input [`regaddrbus] waddr,
input [`regbus] wdata,
input we,
input [`regaddrbus] raddr1,
input re1,
output reg [`regbus] rdata1,
input [`regaddrbus] raddr2,
input re2,
output reg [`regbus] rdata2,
///////////////////////////存取指令
input wire [`regbus] mem_addr,//要访问的数据存储器的地址
input wire mem_we,//是否是写操作,1表示写操作
input wire [`regbus] mem_data_o,//要写入数据存储器的数据
output reg [`regbus] mem_data_i,//从instrom发往mem的的数据
///////////////////////////数据前推端口
input wire [`regdatabus] wdata1,
input wire [`regaddrbus] wd1,
input wire wreg1,
input wire [`regdatabus] wdata2,
input wire [`regaddrbus] wd2,
input wire wreg2
);
reg[`regbus] regs[`regnum-1:0];
// 写操作
always @(posedge clk)begin
if(rst==`rstdisable)begin
//不能写入0地址,有特殊用途
if((we==`writeenable)&&(waddr !=0))begin
regs[waddr]<=wdata;
end
end
end
//读端口1 读操作
always @ (*)begin
if(rst==`rstenable)begin
rdata1<=`zeroword;
//写入0的情况
end else if((re1==`readenable)&&(raddr1==`regnumlog2'h0))begin
rdata1<=`zeroword;
///////////////// //////////////数据前推
end else if((raddr1==waddr)&&(we==`writeenable)&&(re1==`readenable))begin
rdata1<=wdata;
end else if((raddr1==wd1)&&(wreg1==`writeenable)&&(re1==`readenable))begin
rdata1<=wdata1;
end else if((raddr1==wd2)&&(wreg2==`writeenable)&&(re1==`readenable))begin
rdata1<=wdata2;
////////////////////////////////////////////////
end else if(re1==`readenable)begin
rdata1<=regs[raddr1];
end else begin
rdata1<=`zeroword;
end
end
//读端口2 读操作
always @ (*)begin
if(rst==`rstenable)begin
rdata2<=`zeroword;
end else if((re2==`readenable)&&(raddr2==`regnumlog2'h0))begin
rdata2<=`zeroword;
///////////////// //////////////数据前推
end else if((raddr2==waddr)&&(we==`writeenable)&&(re2==`readenable))begin
rdata2<=wdata;
end else if((raddr2==wd1)&&(wreg1==`writeenable)&&(re2==`readenable))begin
rdata2<=wdata1;
end else if((raddr2==wd2)&&(wreg2==`writeenable)&&(re2==`readenable))begin
rdata2<=wdata2;
////////////////////////////////////////////////
end else if(re2==`readenable)begin
rdata2<=regs[raddr2];
end else begin
rdata2<=`zeroword;
end
end
///////////////////////////////////存储命令添加的存取
//存 sw要存
always @(posedge clk)begin
if(rst==`rstdisable)begin
//不能写入0地址,有特殊用途
if((mem_we==`writeenable)&&(mem_addr !=0))begin
regs[mem_addr]<=mem_data_o;
end
end
end
//取 lw用
always @ (*)begin
if(rst==`rstenable)begin
mem_data_i<=`zeroword;
end else if(mem_we==`writedisable)begin//不写就是读
mem_data_i<=regs[mem_addr];
end else begin//留着不知道有什么用
mem_data_i<=`zeroword;
end
end
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
# 编码器 Decoder
decoder_5_32:5-32 编码器
decoder_5_32.v
`timescale 1ns / 1ps
`include "defines.v"
module decoder_5_32(
input[4:0]in,
output[31:0]out
);
genvar i;
generate
for(i=0;i<32;i=i+1)
begin:bit
assign out[i]=(in==i);
end
endgenerate
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
decoder_6_64:6-64 编码器
decoder_6_64.v
`timescale 1ns / 1ps
`include "defines.v"
module decoder_6_64(
input[5:0]in,
output[63:0]out
);
//独热码形式
genvar i;
generate
for(i=0;i<64;i=i+1)
begin:bit
assign out[i]=(in==i);
end
endgenerate
endmodule
2
3
4
5
6
7
8
9
10
11
12
13
14
15
